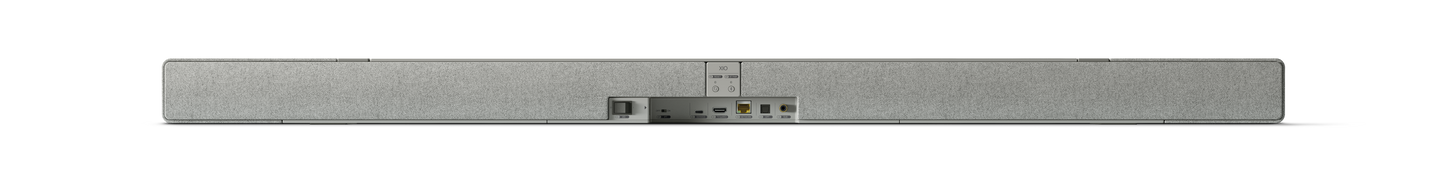

KEF XIO Soundbar

Key Features

• Immersive 5.1.2 Dolby Atmos: Delivers object-based surround sound for a cinematic experience.

• Music Integrity Engine (MIE): DSP algorithms process sound for accurate placement, realism, and coherence.

• 12‑Driver Array:

  • 6 × 50 mm Uni-Q MX drivers (mid/high)

  • 2 × 50 mm full-range drivers

  • 4 × 50 × 152 mm woofers for deep, controlled bass.

• High Power Amplification: 820 W total, via 8 × Class D amps for mids/highs and 4 × Class D amps for bass.

• Smart Placement Calibration: Intelligent Placement Technology (IPT) automatically adjusts EQ based on placement.

• Versatile Connectivity: HDMI 2.1 eARC, Optical (TOSLINK), Ethernet, USB‑C (service).

• Streaming & Wireless: Wi-Fi (2.4 / 5 / 6 GHz), Bluetooth 5.3, AirPlay 2, Google Cast, UPnP.

• Subwoofer Output Options: RCA (wired) or wireless with compatible KEF module.

• Supported Audio Formats: Dolby Atmos, DTS:X, MPEG-H, 360 Reality Audio, FLAC, WAV, ALAC, MP3, etc.

• High-Res Support: HDMI up to 192 kHz / 24-bit, network up to 384 kHz / 24-bit, optical up to 96 kHz / 24-bit.

• Audio Modes: Dialogue Mode for clearer voices, Night Mode for low-volume viewing.

Specifications

• Frequency Response: ~34 Hz – 20 kHz (±3 dB)

• Max SPL: 102 dB (measured at 1 m)

• Dimensions (H × W × D): 70 × 1,210 × 165 mm

• Weight: 10.5 kg

• Power Input: 100 – 240 V AC, 50/60 Hz

• Power Consumption:

  • Max operating: ~400 W

  • Standby (Eco): < 2 W

  • No Wi-Fi: < 0.5 W

• Included Accessories: Remote control, AAA batteries, HDMI cable, power cable, wall-mount kit + template, product guide.
